quarter wrapper machine

China quarter wrapper machine supplier

Large Image :  quarter wrapper machine

Product Details:

Place of Origin: China
Brand Name: LMTECH
Certification: CE
Model Number: quarter wrapper machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plastic film.or wood box .or do as your request
Delivery Time: 20 days
Payment Terms: T/T.Western Union
Supply Ability: 15 sets / month
Detailed Product Description
Type: Wrapping Machine Packaging Type: Film, Foil
Driven Type: Electric Packaging Material: Glass, Metal, Paper,PVC.Wood
Automatic Grade: Semi-Automatic Voltage: 220V Or 110V Or 380V
Power: 6KW Weight: 2500kg
After-sales Service Provided: Engineers Available To Your Workshop Glue Type: PUR.cold Glue
Covered Material: PVC ,Paper ,Veneer.PE.Leather .foil.PVC Based Profile: MDF ,WPC ,PVC .glass.metal .aluminium.stone .WPC .baord
Max. Film Covering Width: 600mm Do As Your Requst Speed Of Material Delicery: 0-50m/min

quarter wrapper machine


quarter wrapper machine

quarter wrapper machine

Works by using different angles veneer roller coated on the workpiece to suppress,in the process,the process pressure rate and pressure can be adjusted according to different coating material.

Works by using different angles veneer roller coated on the workpiece to suppress,in the process,the process pressure rate and pressure can be adjusted according to different coating material. A full set of manufacturing processes can be full automatic assembly line,the normal working can be done without human intervention,it just need  to feed material from adhesive coating to expectthe sending until the product be finished.which reduce labor costs and ensure the passing rate of processed products and processing efficiency.

A full set of manufacturing processes can be full automatic assembly line,the normal working can be done without human intervention,it just need  to feed material from adhesive coating to expectthe sending until the product be finished.which reduce labor costs and ensure the passing rate of processed products and processing efficiency.

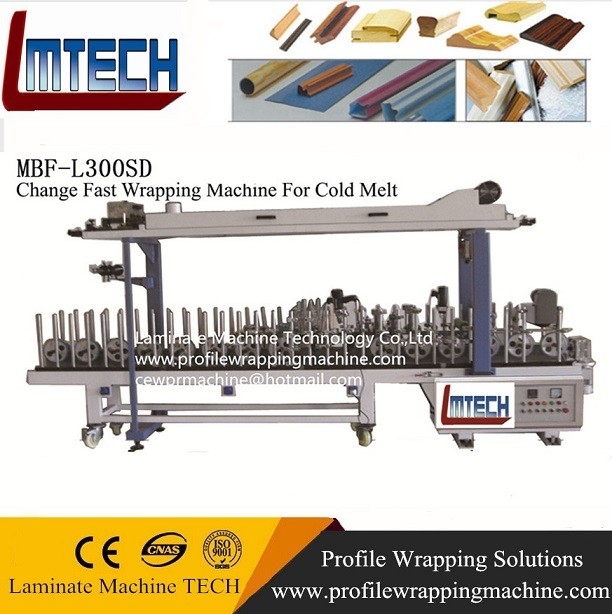

PVC PROFILE LAMINATION/WRAPPING MACHINE

 General Introduction PVC PROFILE LAMINATION/WRAPPING MACHINE

This machine adopts easy & simple gluing system .Two types of glue .which are water solvent or oil sovent .can be chosed to paste PVC,melamine film on various of surface .
PVC PROFILE LAMINATION/WRAPPING MACHINE
PVC PROFILE LAMINATION/WRAPPING MACHINE

The Features of profile wrapping machinery .

1.This machine uses high quality steel and connects with bolt rather that welding so as to avoid disfigure of the framework. High accuracy gear transmission, mechanical stepless speed change in the electrical engine adopts stepless timing



2.The bottom wheels are all made by silicon rubber and aluminum. They are wearable and not sticky to the glue. And it can be used long.

3.The glue plate can be moved upward or downward according to the height of the work piece so that the wrapping can go smoothly.

quarter wrapper machinePVC PROFILE LAMINATION/WRAPPING MACHINE

mainly  to do produce for  the decoration Materials, aluminum material surface with PVC wrapping, with scraping glue system to keep the glue spreading uniform, it is suitable for different complicate shape, as angle parts, around ARC, roughness, extruding shape, so as to get a excellent surface.

PVC PROFILE LAMINATION/WRAPPING MACHINE

Specifications of PVC PROFILE LAMINATION/WRAPPING MACHINE

Overall dimension:4200*700*2100mm.
Max. Wrapping height: 80mm
Max  Wrapping width :300mm .(can do 450-500 mm as your request)
Feeding speed  0-20m/min
Power 7.5kw
Weight:2 T
quarter wrapper machine
profile wrapping machine
mainly  to do produce for  the decoration Materials, aluminum material surface with PVC wrapping, with scraping glue system to keep the glue spreading uniform, it is suitable for different complicate shape, as angle parts, around ARC, roughness, extruding shape, so as to get a excellent surface.
Detail package :
1, Foam & shrink film
2, Wooden should be added more cost
quarter wrapper machine
quarter wrapper machine
Competitive Advantage:

1.7*24 hours good after-service
2.Spare parts are free
3.Two years Warranty
4.Advanced technology and best quality
5.CE certification
6.Our engineer can do help and teach customer to test the machine in your factory .

Deatail Warranty List :
1.Within Warranty Period .manitenance and repair services are for free ..we will prepare related spare parts
for you before shipping .
2.Within Warranty Period .We can provide the free training about operation and daily maintenance when you visit our factory
3.Technical warranty  :if you need our engineer to help you install and train in your workshop .we will do as your reqeust .
4.The quality warranty : Two Years warranty .
5.QuickResponse ..7*24 tech service

We do supply a whole life after service maintenance and tech support .you can call us any time .

Further information on Profile wrapping machine video and profile wrapping price ,please feel free to contact us .
