Vacuum PVC Membrane Press Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Hot Press | Table Size: | 2550*1300*80mm |
|---|---|---|---|
| Working Speed: | 2-3 Min/1 Door | Maximum Press Hight: | 80mm |
| Total Poer: | 18 | Vacuum Pump: | Germany Becker 70 |
| Negative Pressure: | 0-0.095 Mpa | Working Voltage: | 380 V/50 HZ Or Basis On Client Country |
| Warranty: | Two Years . |
TM 2480EA vacuum press machinery to COVER PVC on door .
PVC ABS VENNER ETC FILM;
Good Quality Pump and Heating electronic parts .
TWO Years Warranty .
CE Certificate .

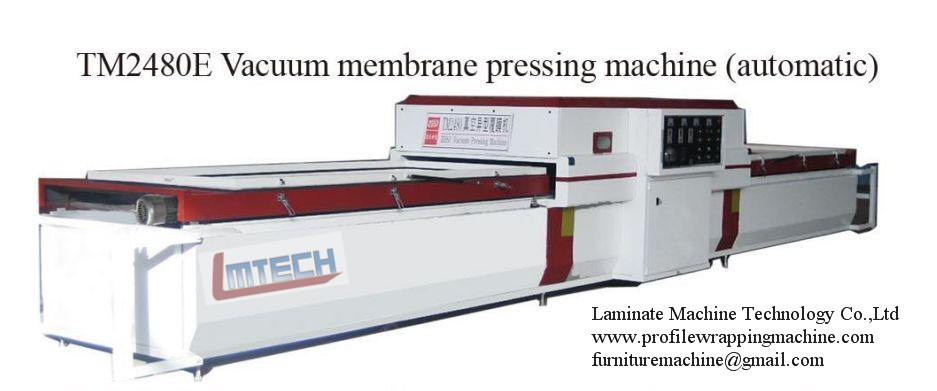

TM2480EA Vacuum Membrane Pressing Machine(Automaticexport)
| Condition | New |
| Type | Vacuum Forming Machine |
| Plastic Type | PVC |
| Product Type | Sheet |
| Automatic | Yes |
| Place of Origin | Shandong, China (Mainland) |
| Brand Name | LMTCH |
| Model Number | Vacuum Press Machine |
| Voltage | 380V 50HZ / 220V 60HZ |
| Power(W) | 27kw |
| Weight | 2T |
| Dimension(L*W*H) | 10800*2100*1600mm |
| Certification | CE |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Type: | Wooden Door Vacuum Press Machine |
| Overall Dimension | 10800*2100*1600mm |
| Platen Size | 25008*1300*60mm |
| Rated Working Pressure | Negative pressure ≥-0.095Mpa |
| Power | 27kw |
| Heating | upper and lower heating |
| Weight | 2T |
| Voltage | 380V 50HZ / 220V 60HZ |
| Working Speed | 2~3 min/1 door |
| Certification: | CE |
1. Adopts automatic digital display technology,the machine features highly automatic, easy operation and reliable.
2. Working platform is made of special steel, which is resistant to high temperature and corruption.
3. Use infrared heating system and imported thermal insulation material, which can ensure even heating and energy saving.
4. Uses top quality vacuum pump, features reliable performance and prompt pumping.
5. Mulei-application, PVC film, Wood veneer and hot transfer is available.
More detail information,please do kindly contact with us .
