PVC & wooden veneer profile wrapping machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Function: | Heat Transfer Printting |
|---|

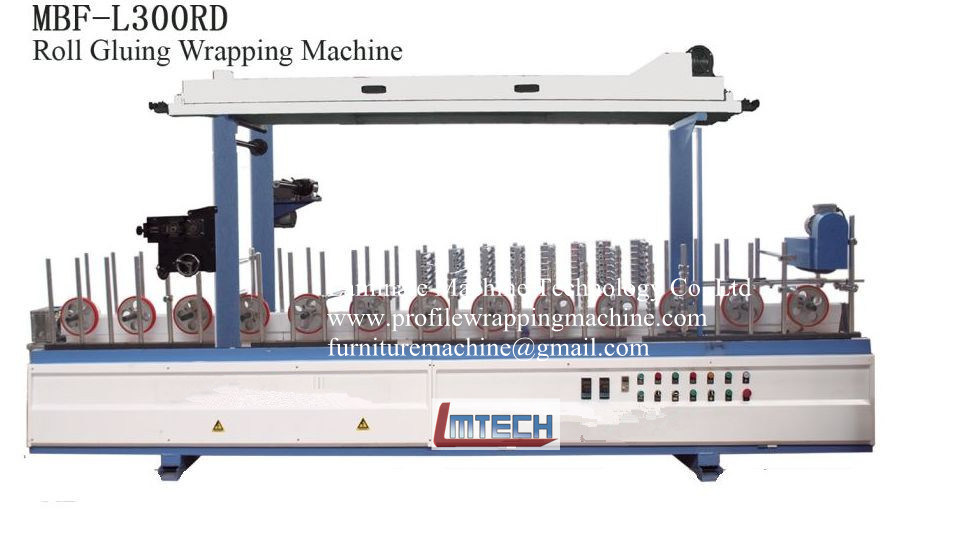

MBF-L300RD PVC & Wood Veneer Profile Wrapping Machine
Heat Transfer Printting /Profile Wrapping Machine Manufacturer -LMTECH
PVC wrapping machine
Veneer Laminator equipment
General Introduction of of Heat Transfer Printting Machine.
This machine adopts Roll Gluing system,it can wrap PVC film ,Melamine film etc on all kind of boards.set lines of window & doors.rails of stairs .this machine also can wrap with various shapes .such as curved .grooved .bulged surface and sides at same time.
The Features of MBF-L300RD Heat Transfer Printting machinery.
1.This machine uses high quality steel and connects with bolt rather that welding so as to avoid disfigure of the framework. High accuracy gear transmission, mechanical stepless speed change in the electrical engine adopts stepless timing
2.The bottom wheels are all made by silicon rubber and aluminum. They are wearable and not sticky to the glue. And it can be used long.
3.The glue plate can be moved upward or downward according to the height of the work piece so that the wrapping can go smoothly.
4.automatically clear equipment
5.Gluing roller is used with draw knife .it is easy to operate and with high finished gluing degree.
6.Wrapping speed can be adjustabled .
Specifications of MBF-L300RD Heat Transfer Printting Machine :
Overall dimension:4200*700*2100mm.
Max. Wrapping height: 80mm
Max Wrapping width :300mm .(can do 450-500 mm as your request)
Feeding speed 0－20m／min
Power 7.5kw
Weight:2 T
Competitive Advantage:
1.7*24 hours good after-service
2.Spare parts are free
3.Two years Warranty
4.Advanced technology and best quality
5.CE certification
6.Our engineer can do help and teach customer to test the machine in your factory .
Further information on Profile wrapping machine video and profile wrapping price ,please feel free to contact us .
