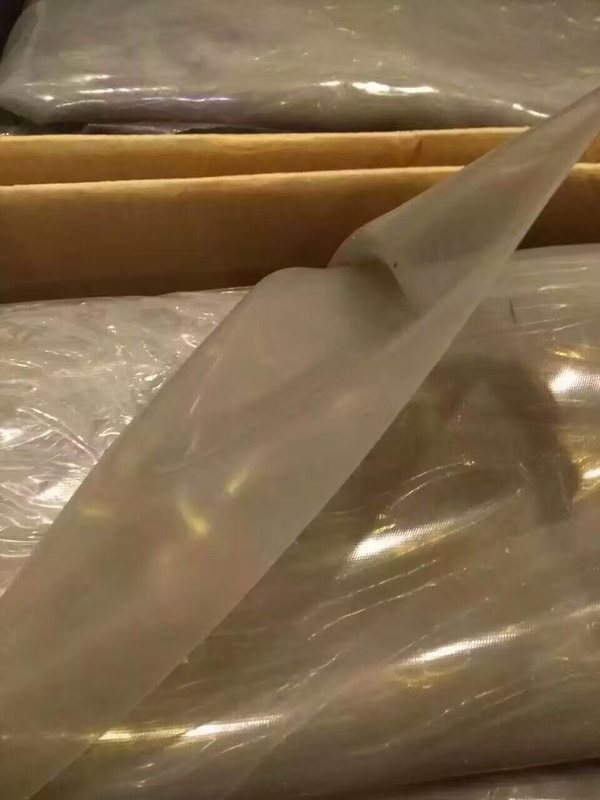

High Definition Silicone Membranes for Vacuum Forming
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Used: | Veneer Silicone Rubber Membrane For Vacuum Press | Thickness:: | 1mm,2mm,3mm,4mm |
|---|---|---|---|
| Color:: | Gray Or White Translucent | Tearing Strengt: | ≥32N/mm |
| Tensile Strength: | ≥9.0Mpa | Hardness: | 40shore A |
| Temperature Resistance: | 260℃ | Application: | Vacuum Membrane Machine |
High Definition Silicone Membranes for Vacuum Forming
Technical Performance Indicators:
| Model | First-generation DH-A | Second-generation DH-B | Third-generation DH-C | Fourth-generation DH-D |
| Hardness (Shore A) | 70±2 | 72±2 | 65±3 | 75-78(working surface) 60-65(buffering surface) |
| Breaking strength Mpa≥ | 11.5 | 14.2 | 16.8 | 10.8 |
| Tearing strength N/mm≥ | 45 | 47 | 39 | 48 |
| Thermal endurance°C | 220 | 240 | 180 | 250 |
| EVA resistance (Comparison) | Weak | Medium | Strong | Strong |
| Normal service life (time) | >2000 | >3000 | >4000 | >5000 |
| Appearance and color | Transparent-polishing-rough/ double-side rough |
Red, grey- polishing- rough/double-side rough | Black- polishing-rough/ double-side rough |
Black/grey-polishing- rough |
| Remark | Width of 4000mm without abutted seam is available, initiated in the world. Special specifications are customizable as required. All specification of silicon seal and high-temperature Teflon adhesive tapes are available. |
|||
High-Temp Heavy Duty Silicone Membrane for use with vacuum press. Excellent for thermoformable plastic pressing.
1.Thickness:1mm,2mm,3mm
2.Maximum width up to 3800mm without split joint;
3.Color:Gray-Transparent,White-Transparent or customized;
4.Any length;
5.Excellent elasticity and long time flexbility
6.High tear-resistant silicone rubber material
7.Waterproof&oilproof
8.High temperature up to 260°C
1:Small order: Inside: Water-proof plastic film Outside: Carton box packing
2:Big order Inside: Woven bag or Gunny bag packing Outside: Wooden box packing 3: Based on customized packing
shipping is by DHL,TNT,FEDEX or customized. By sea
Deatail Warranty List :
1.Within Warranty Period .manitenance and repair services are for free ..we will prepare related spare parts
for you before shipping .
2.Within Warranty Period .We can provide the free training about operation and daily maintenance when you visit our factory
3.Technical warranty :if you need our engineer to help you install and train in your workshop .we will do as your reqeust .
4.The quality warranty : Two Years warranty .
5.QuickResponse ..7*24 tech service
We do supply a whole life after service maintenance and tech support .you can call us any time .
Further information on Profile wrapping machine video and profile wrapping price ,please feel free to contact us .
